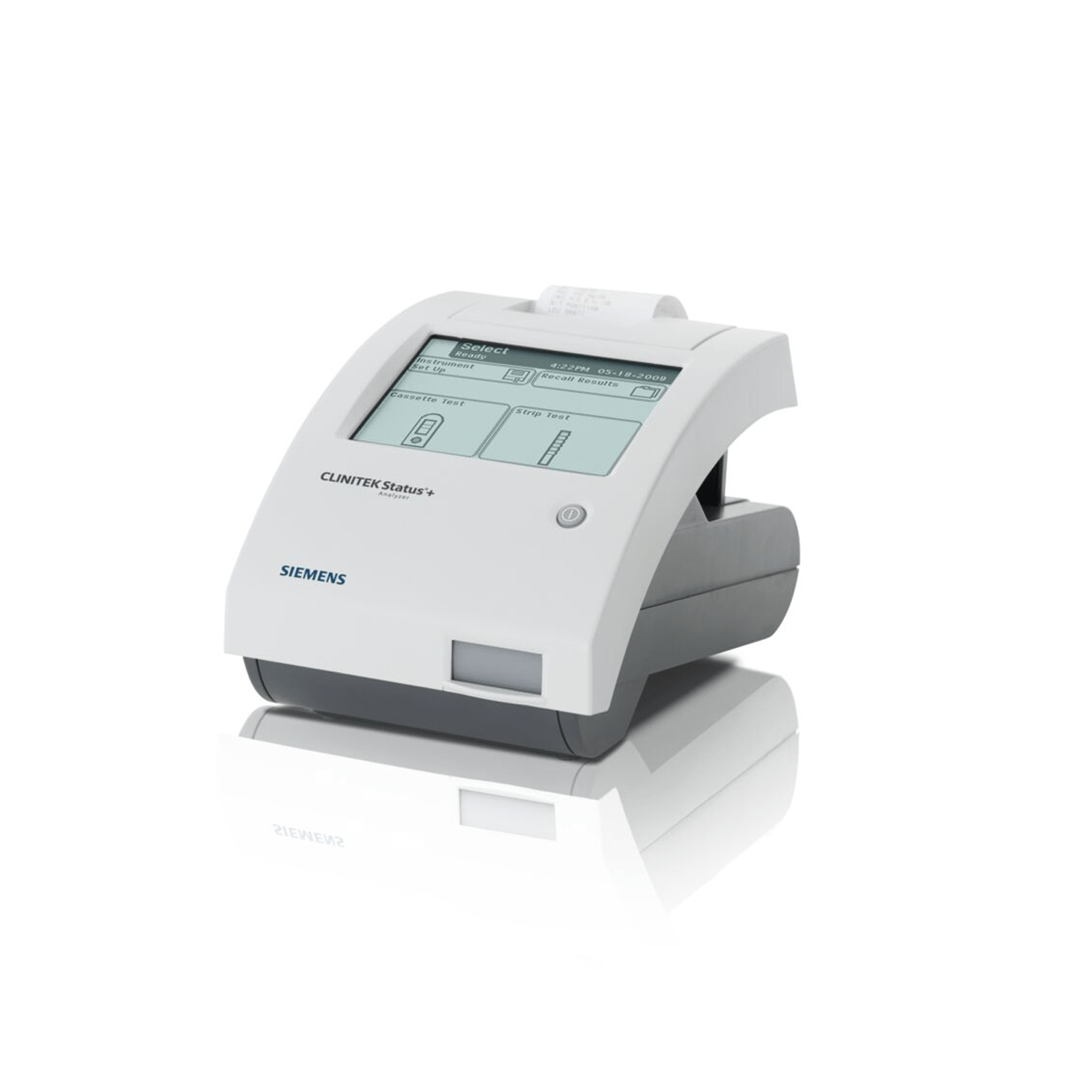

The CLINITEK Status®+ Analyzer features automatic checks (Auto-Checks*). The analyzer automatically checks each test strip for humidity exposure, common sample interferences† and strip identification for Siemens Healthineers test strips. Together, these provide improved clinical information.
|
Semi-quantitative Tests Measured
|
|
|
Routine urine tests
|
albumin, bilirubin, creatinine, glucose, ketone, leukocytes, nitrite, pH, protein, specific gravity, and urobilinogen
|
|
Kidney disease test
|
albumin-to-creatinine ratio
|
|
Pregnancy test
|
Human Chorionic Gonadotropin (hCG)
|
|
User Interface |
|
|
Touchscreen
|
|
|
Computer Interface |
|
|
Uni-directional via Serial Port (RS232)
|
|
|
Data Entry |
|
|
Onboard touchscreen
|
|
|
Power Requirements |
|
|
Electrical rating
|
100V – 240V AC, 50-60 Hz (with in-line lead)
|
|
Battery operation
|
6 AA batteries, non-rechargeable
|
|
Dimensions/Weight |
|
|
Depth
|
27.2 cm
|
|
Width
|
17.1 cm
|
|
Height
|
15.8 cm
|
|
Weight
|
1.66 kg
|
|
Operation |
|
|
Temperature range
|
18 to 30ºC (64 to 86ºF)
|
|
Humidity range
|
18-80% Relative Humidity, non-condensing
|
|
Calibration |
|
|
Automatic, self-calibrating
|
|
|
Memory |
|
|
Patient test results
|
700
|
|
QC test results
|
0
|
|
Operator IDs
|
700
|
Easy to Use and Convenient

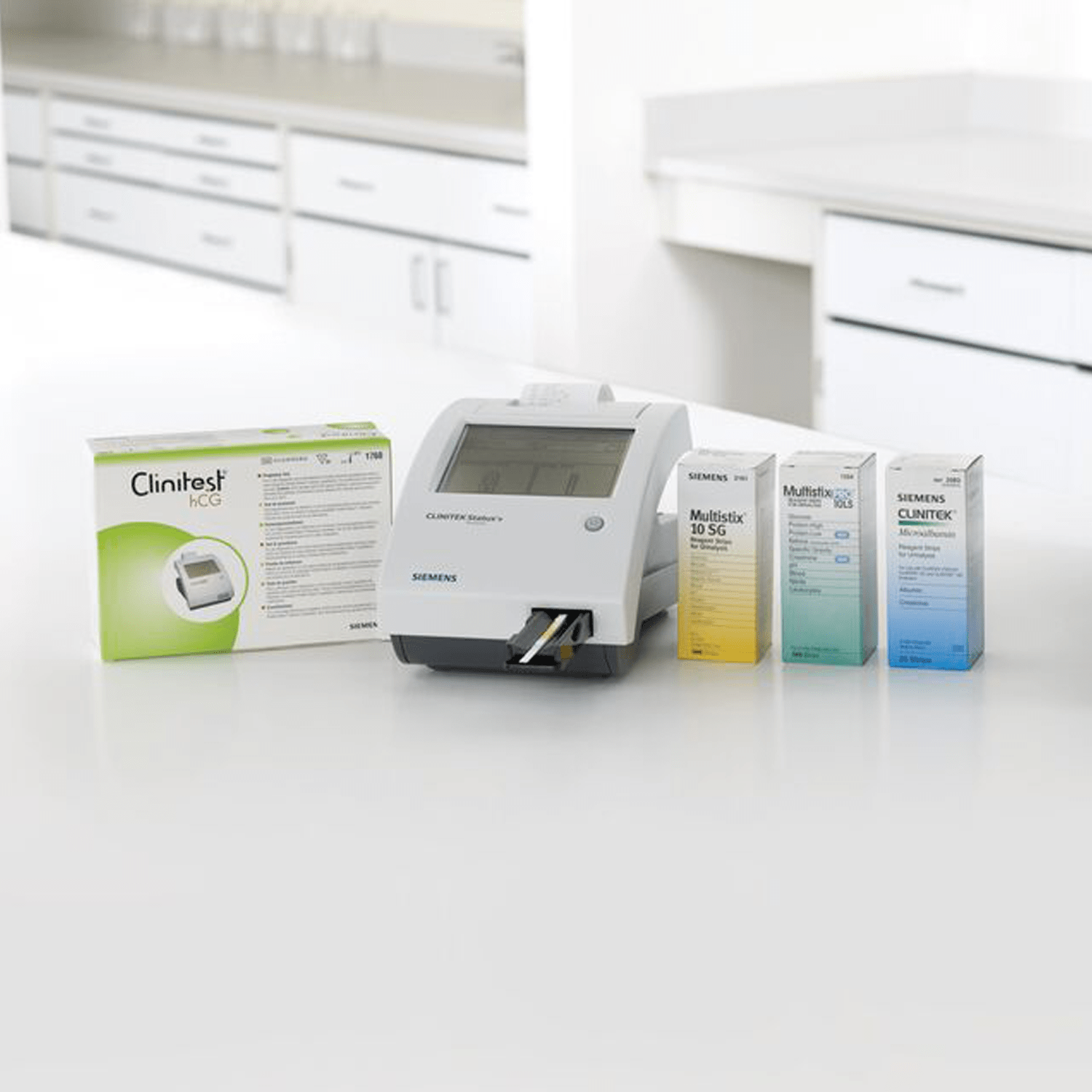

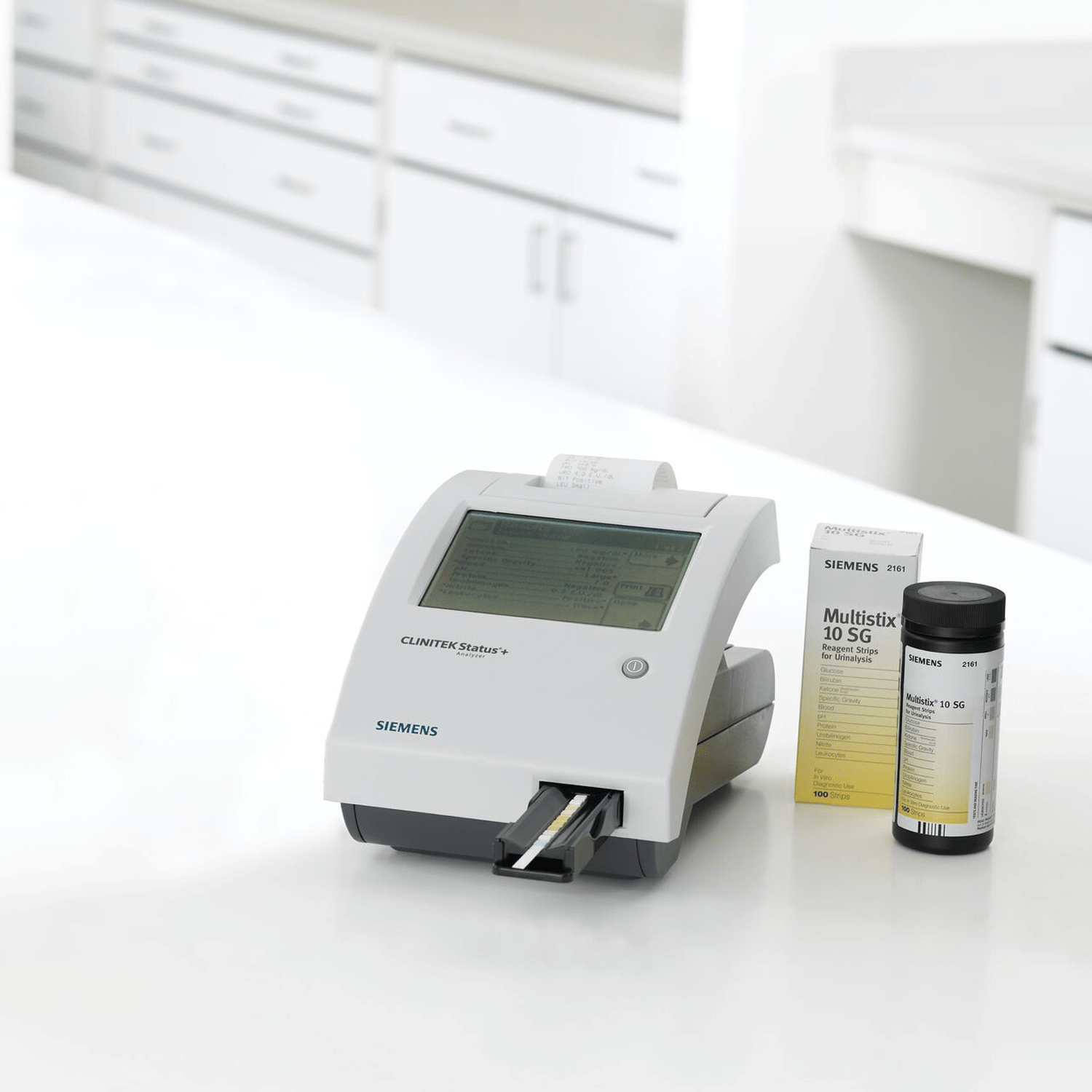

The CLINITEK Status+ Analyzer provides automated reading of the Multistix® family of urinalysis tests:
*Only available when using Siemens Healthineers test strips with IR or color bands
§Point of Care Diagnostic Testing Worldwide Markets. Trimark Publications. June 12, 2009
‡ Not available in all markets. Product availability may vary by country.
Atellica, Auto-Checks, CLINITEK Advantus, CLINITEK Status, DCA Vantage, epoc, Multistix, POCcelerator, RAPIDComm, RAPIDLab, RAPIDPoint, STIX, and all associated marks are trademarks – owned by or licensed to Siemens Healthcare Diagnostics Inc., or its affiliates. All other trademarks and brands are the property of their respective owners.
