CLINITEK Status® Connect System simplifies wireless or wired connectivity and testing oversight in point-of care urinalysis for improved risk management.
|
Semi-quantitative Tests Measured
|
|
|
Routine urine tests
|
albumin, bilirubin, creatinine, glucose, ketone, leukocytes, nitrite, pH, protein, specific gravity and urobilinogen
|
|
Kidney disease test
|
albumin-to-creatinine ratio
|
|
Pregnancy test
|
Human Chorionic Gonadotropin (hCG)
|
|
General Specifications
|
|
|
Depth
|
27.2 cm
|
|
Width
|
17.1 cm
|
|
Height
|
18.5 cm
|
|
Weight
|
2.3 kg
|
|
Electrical rating
|
100V – 240V AC, 50-60 Hz (with in-line lead)
|
|
Battery operation
|
Not available
|
|
Ambient temperature range
|
18 to 30ºC
|
|
Humidity range
|
18-80% relative humidity, non-condensing
|
|
Compliance
|
UL, CE, EMC
|
|
Calibration
|
automatic, self-calibrating
|
|
Communication Capabilities
|
|
|
Communication protocol
|
HL7, POCT1-A2
|
|
Data transmission options
|

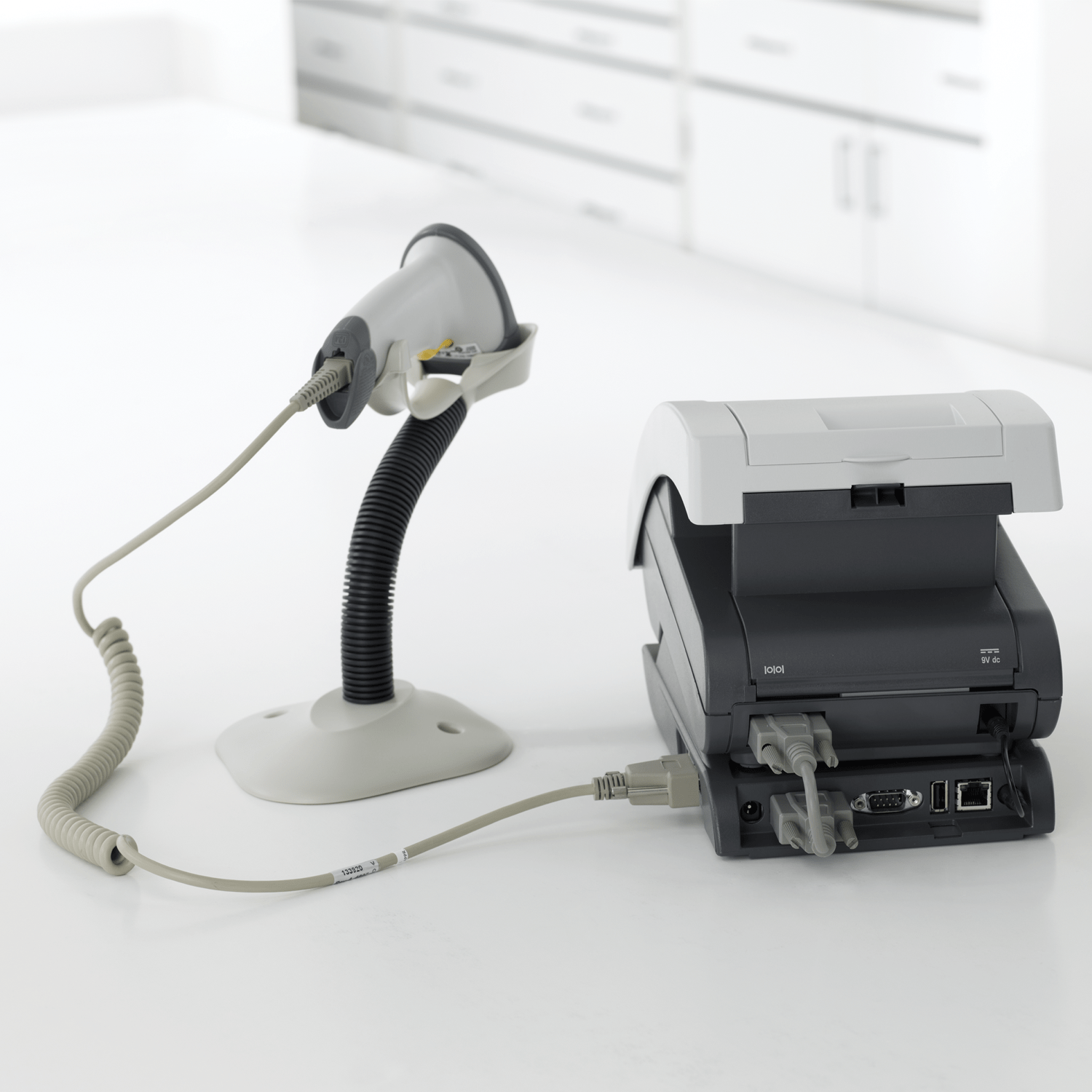

wireless, Ethernet or serial connection
|
|
Interfaces with leading point-of-care
data management solutions* |
|
|
Memory
|
|
|
Patient test results
|
700
|
|
QC test results
|
200
|
|
Operator IDs
|
700
|
|
Quality Control Management Features
|
|
|
QC testing and reporting
|
|
|
QC reminders or mandatory prompt
|
|
|
QC lockout
|
|
|

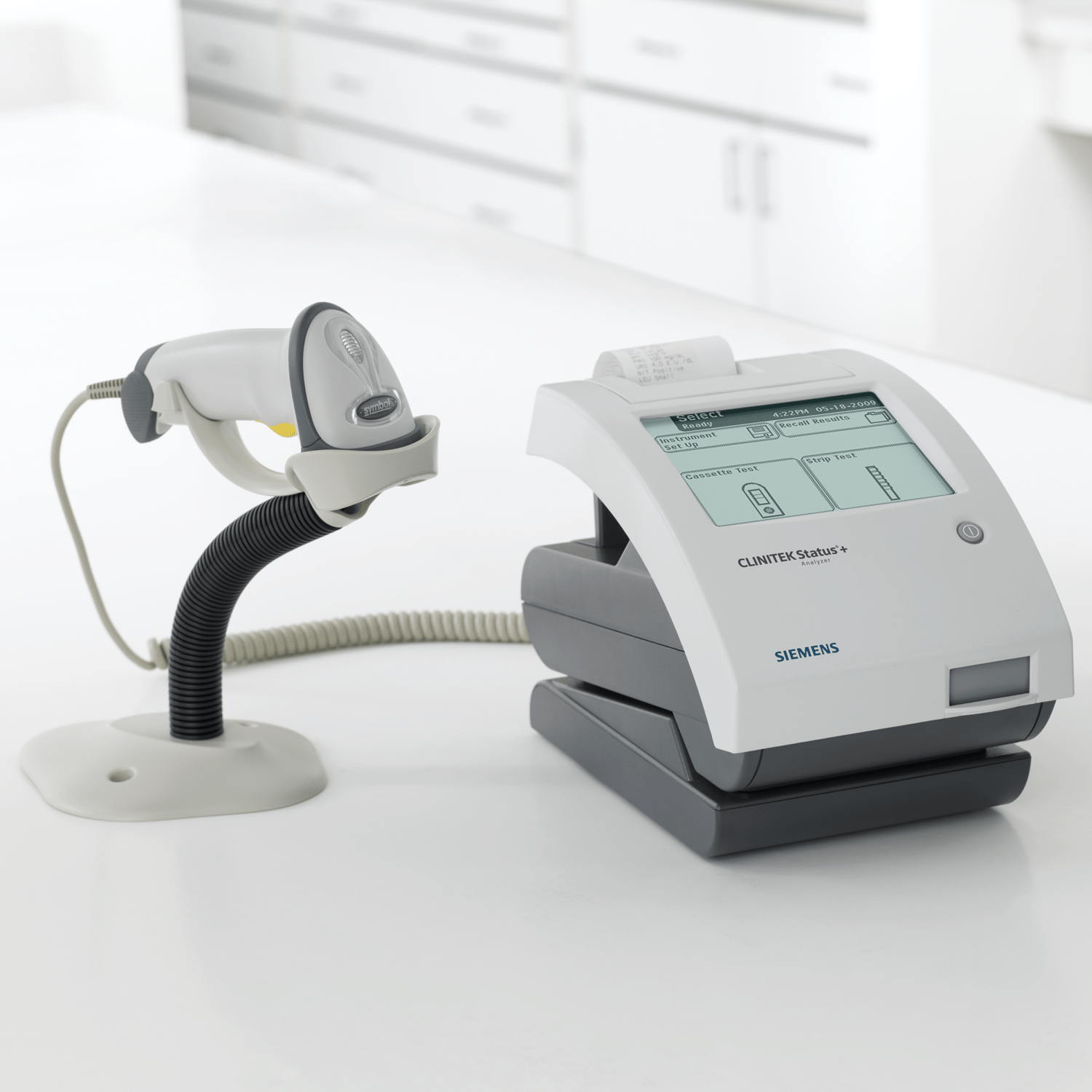

Barcode Data Entry
|
|
|
Patient ID, operator ID and name,
QC control type, lot number, and expiration date |
|
|
Barcode Symbology Supported
|
|
|
Code 93, Code 39 (with and without check digit), Code 128, Coda Bar, Interleaved 2 of 5 (with and without check digit)
|
|
|
Operator Security Features
|
|
|
Define up to 700 operators
|
|
|
Operator lock-out to prevent unauthorized use
|
|
|
Customize access level for each operator for the following functions:
|

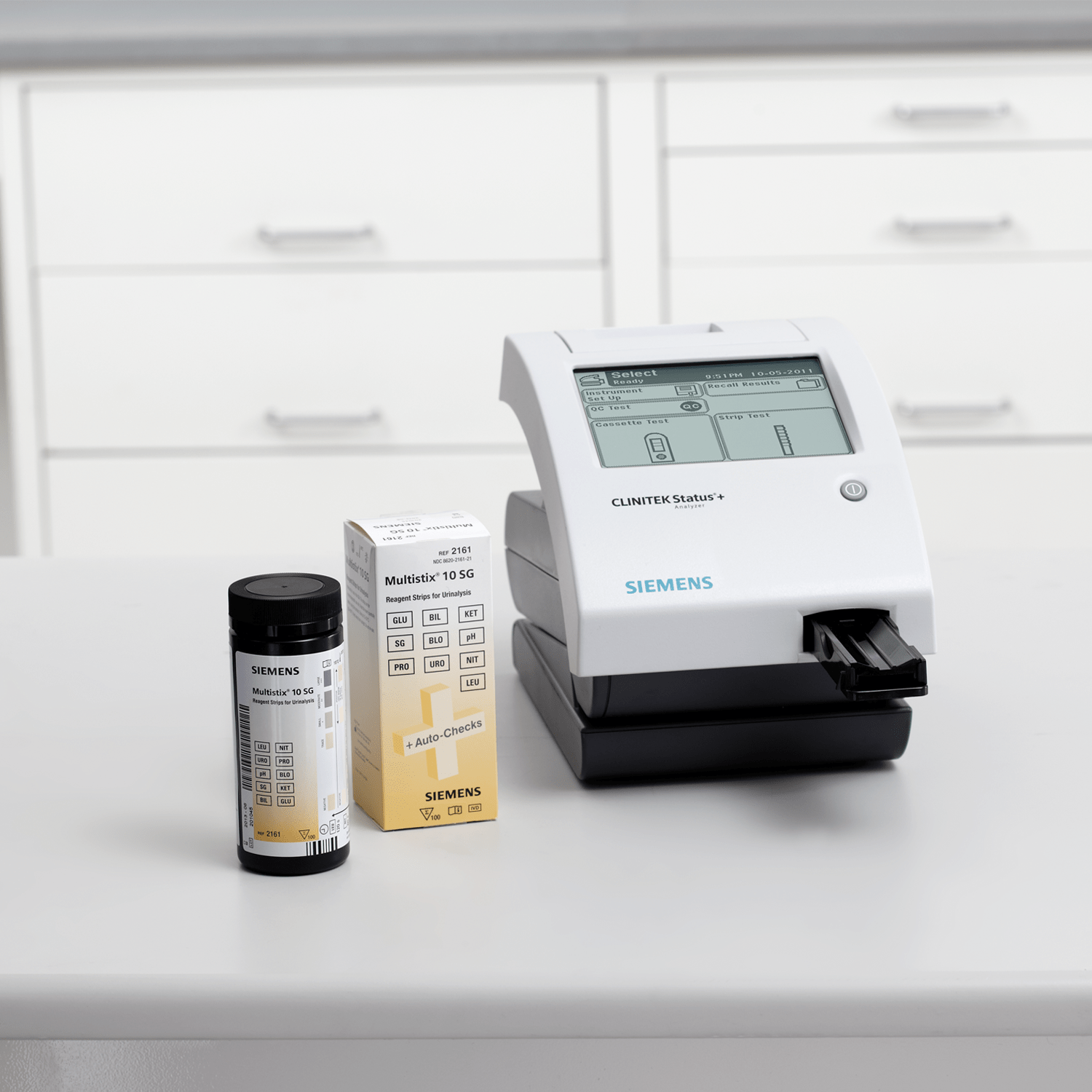

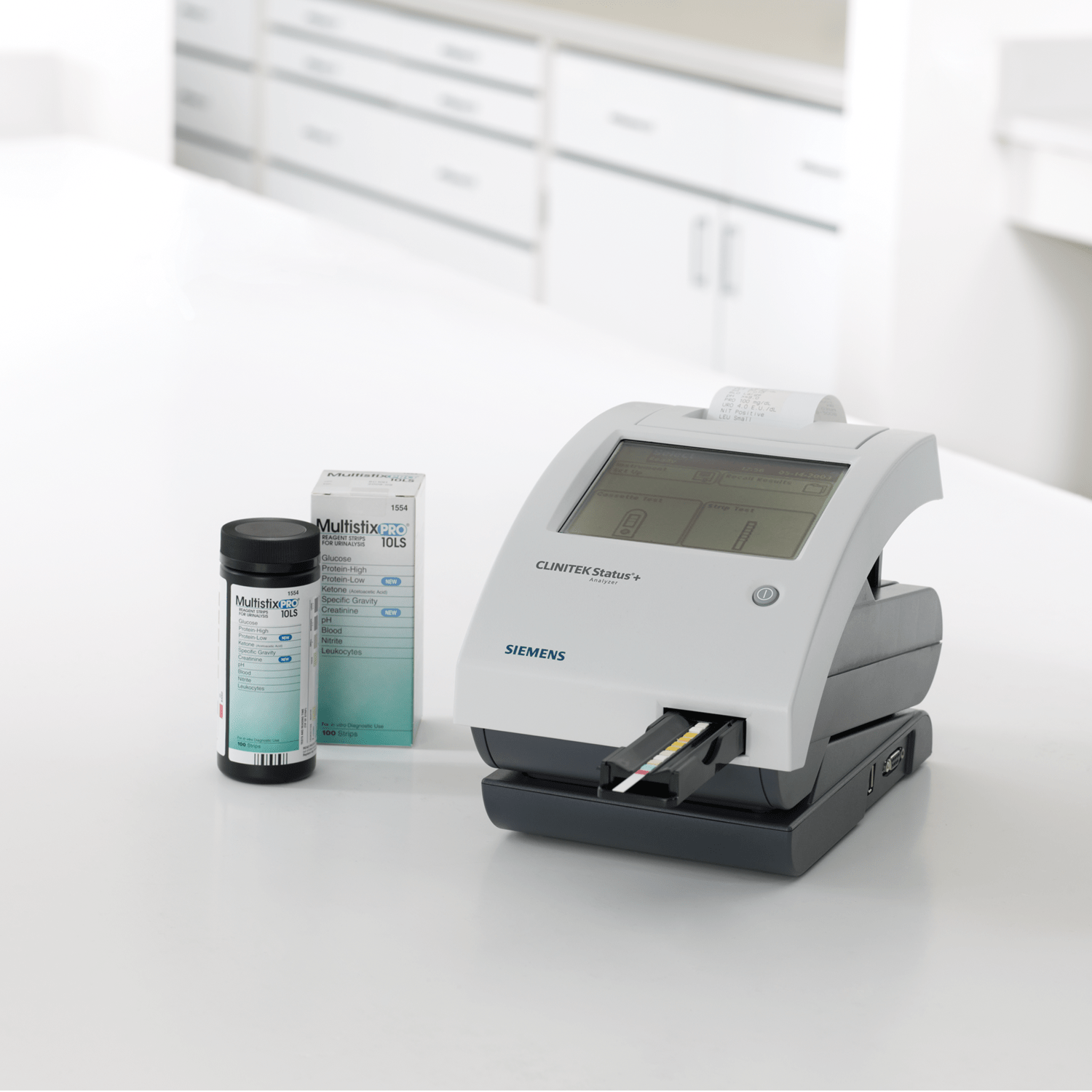

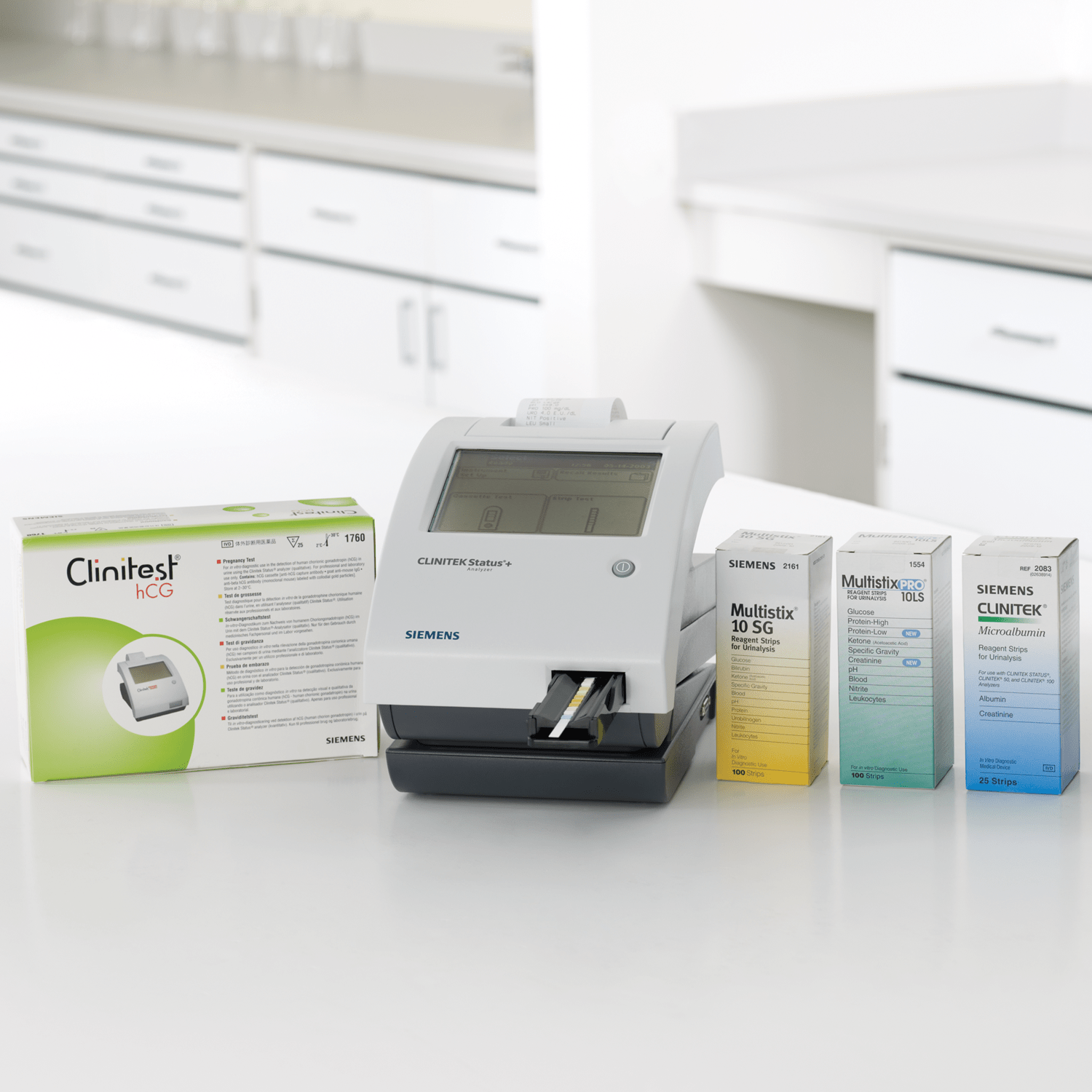

The CLINITEK Status Connect System provides automated reading of the Multistix® family of urinalysis tests:
Auto-Checks:
*Only available when using Siemens Healthineers test strips with IR or color bands
§Point of Care Diagnostic Testing Worldwide Markets. Trimark Publications. June 12, 2009
‡ Not available in all markets. Product availability may vary by country.
Atellica, Auto-Checks, CLINITEK Advantus, CLINITEK Status, DCA Vantage, epoc, Multistix, POCcelerator, RAPIDComm, RAPIDLab, RAPIDPoint, STIX, and all associated marks are trademarks – owned by or licensed to Siemens Healthcare Diagnostics Inc., or its affiliates. All other trademarks and brands are the property of their respective owners.
