Stress and resting ECG with suction system

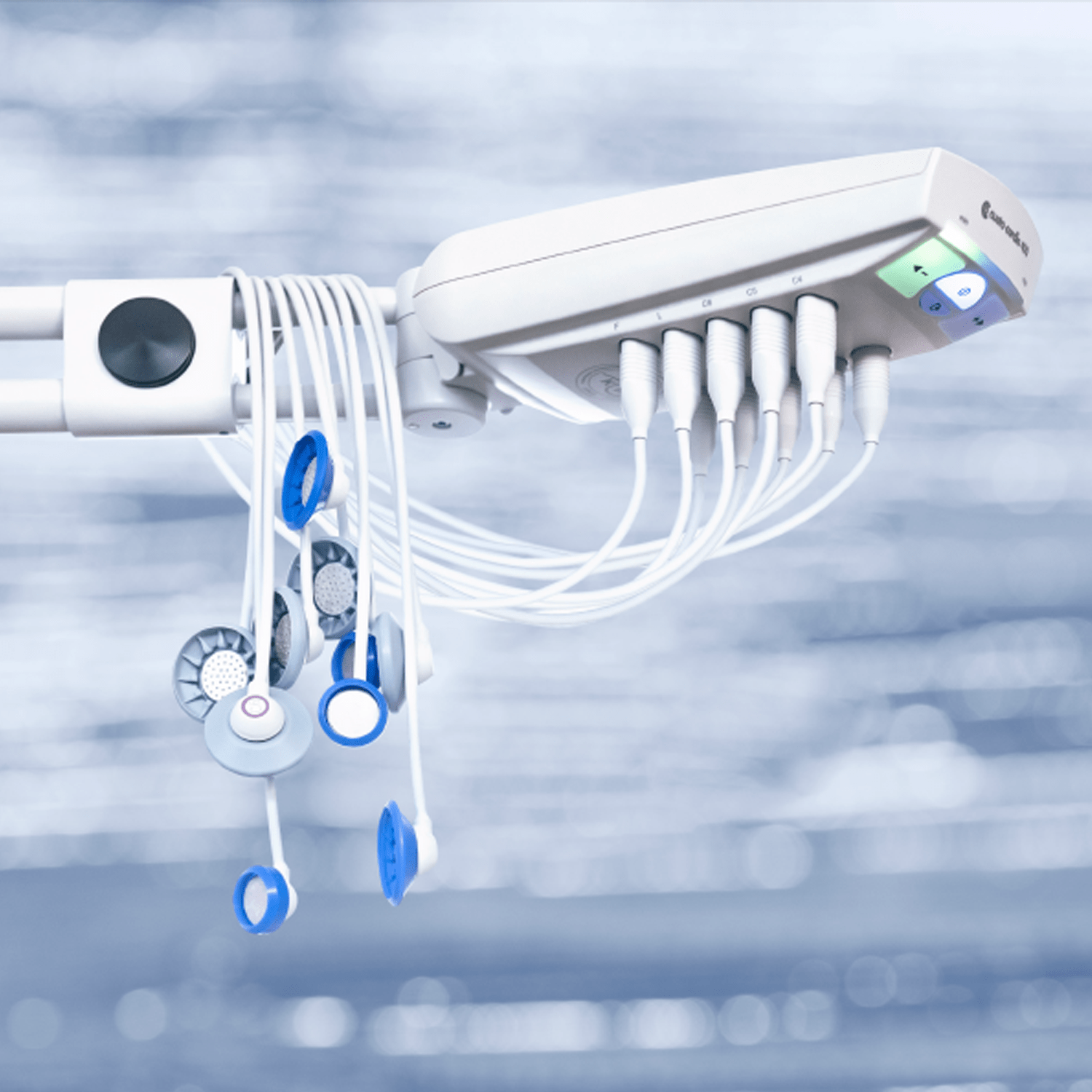

custo cardio 400 is our resting and stress ECG with suction system in one device. It sets new standards in functionality, operability and hygiene. After intensive testing, custo cardio 400 has been awarded with the certificate of the German Society for Hospital Hygiene (just like custo cardio 200). By means of exchangeable, reusable suction electrodes a totally hygienic and sustainable application is guaranteed.
Accessories
Frequency response: 0 to 0.262 * sampling frequency [HZ]
Sampling frequency: 1000, 2000, 4000, 8000, 16000 (only USB), 32000 (only USB) Hz
Sampling rate: Identical for all channels, possible settings: 1.0 ms / 0.5 ms / 0.25 ms / 0.125 ms / 0.0625 ms (only with USB) / 0.03125 ms (only with USB)
Deviation: < 1.5 %
A/D converter: 24 bit
Input impedance: > 50 MΩ
Amplitude quantification: 1.526 μV/bit
CMRR: > 93 dB
Defibrillation protection: Electrical strength 5000 V (recovery time < 5 s)
Suction power: 6 levels, 0 – 280 mbar (in 40 mbar increments)
Power supply: 12 V power supply unit
Max. power consumption: 7 Watt
EDP connection: USB (3 m) and Bluetooth 2.1 EDR
Bluetooth range: Generally 10 m, depending on ambient conditions
Dimensions: 250 x 110 x 60 mm (L *x W x H)
Weight: Approx. 680 g (device without leads and electrodes)
Patient leads: Approx. 1450 mm (extremities), approx. 1200 mm (precordial)
Classification: Device with external power supply, Class IIa according to MDD, Type CF application part
Underlying standards: IEC 60601-1, DIN IEC 60601-2-25, IEC 60601-1-2
Reusable electrodes
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Nasal PAP ventilation system
The SuperNO2VA nasal PAP ventilation system uses the flow from any oxygen source. Delivers positive airway pressure to stent open the upper airway, allowing for the preoperative delivery of positive pressure ventilation and oxygen for patients with a decreased level of consciousness. The SuperNO2VA™ nasal PAP ventilation device is available in medium and large sizes and is offered as a standalone mask with a head strap and as a system, kitted with a hyperinflation bag. These configurations offer flexibility as it allows the SuperNO2VA™ nasal PAP ventilation device to be used with either an anesthesia machine or with only an oxygen flow meter.
Designed For EveryDay Life – Now with Auto-EPAP and MPV
To meet the needs connected to a wide range of respiratory conditions a ventilator must offer outstanding clinical versatility and performance. But equally important, it must be designed around the patient’s life, activities and home environment. Vivo 45 is a ventilator designed to maximize independence and mobility.
Designed for everyday life
Portable hospital spirometer
AioCare is a professional system to monitor and treat pulmonary diseases, consisting of a portable hospital-grade spirometer connected to a smartphone app and an online panel to access the results. The device enables a full spirometry test to be conducted in a doctor’s office, including a bronchial challenge workflow. If monitoring needs to go beyond the healthcare system, AioCare may be used for patients at home.
Vyntus™ BODY Plethysmograph
People come in all shapes and sizes, so we designed Vyntus BODY to accommodate the most patients without increasing the cabin footprint. Many enhancements were incorporated to make Vyntus BODY accessible and user friendly for both patients and technicians.
Vyntus BODY employs much of the same breakthrough technology found in the Vyntus ONE, but with a redesigned breathing circuit and our new Ultrasonic Sensor Technology.
In addition, Vyntus BODY is enhanced with additional innovation such as digital pressure compensation, which helps to reduce environmental influences and improves measurement accuracy.
Brochure
