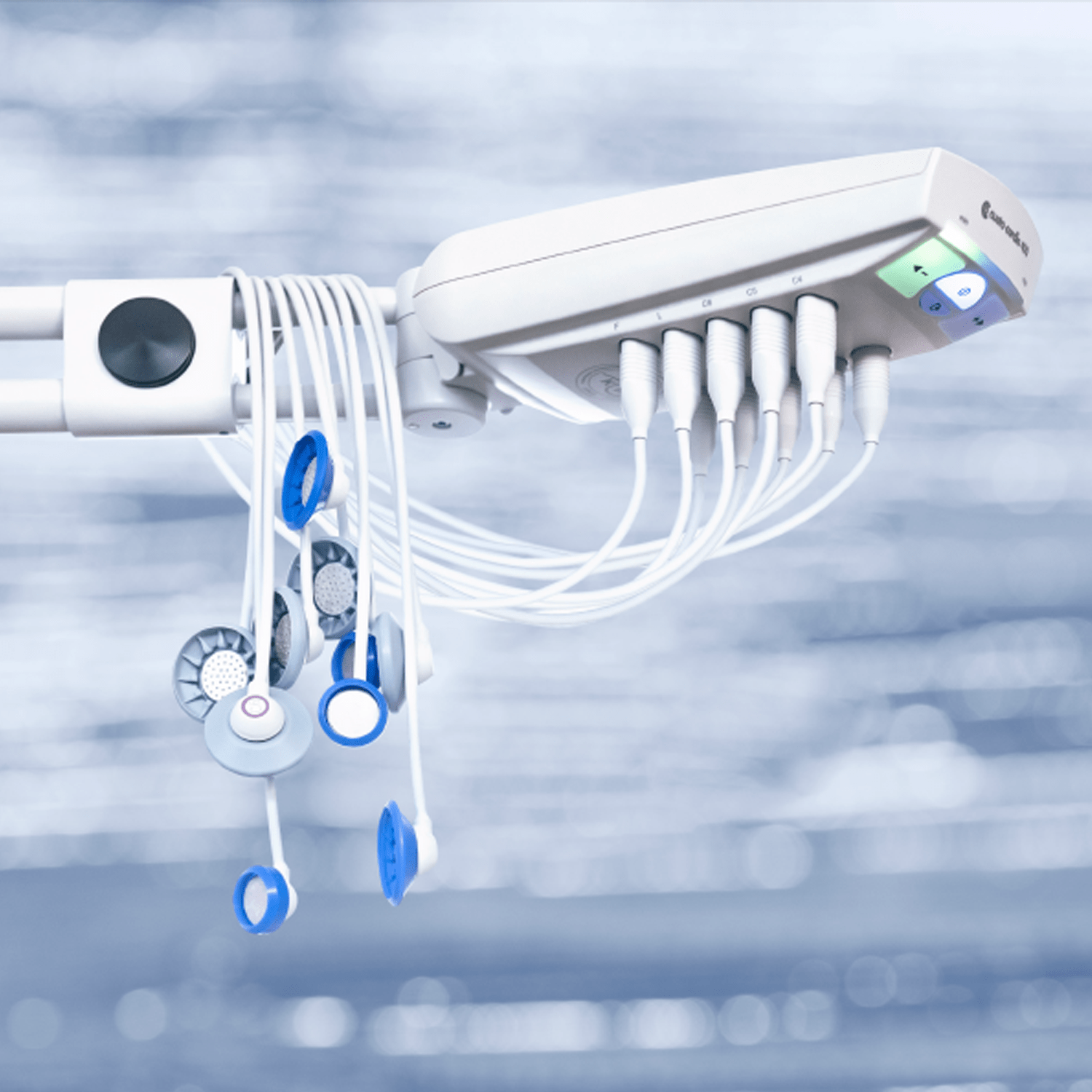

Stress and resting ECG with suction system
custo cardio 400 is our resting and stress ECG with suction system in one device. It sets new standards in functionality, operability and hygiene. After intensive testing, custo cardio 400 has been awarded with the certificate of the German Society for Hospital Hygiene (just like custo cardio 200). By means of exchangeable, reusable suction electrodes a totally hygienic and sustainable application is guaranteed.
Accessories
Frequency response: 0 to 0.262 * sampling frequency [HZ]
Sampling frequency: 1000, 2000, 4000, 8000, 16000 (only USB), 32000 (only USB) Hz
Sampling rate: Identical for all channels, possible settings: 1.0 ms / 0.5 ms / 0.25 ms / 0.125 ms / 0.0625 ms (only with USB) / 0.03125 ms (only with USB)
Deviation: < 1.5 %
A/D converter: 24 bit
Input impedance: > 50 MΩ
Amplitude quantification: 1.526 μV/bit
CMRR: > 93 dB
Defibrillation protection: Electrical strength 5000 V (recovery time < 5 s)
Suction power: 6 levels, 0 – 280 mbar (in 40 mbar increments)
Power supply: 12 V power supply unit
Max. power consumption: 7 Watt
EDP connection: USB (3 m) and Bluetooth 2.1 EDR
Bluetooth range: Generally 10 m, depending on ambient conditions
Dimensions: 250 x 110 x 60 mm (L *x W x H)
Weight: Approx. 680 g (device without leads and electrodes)
Patient leads: Approx. 1450 mm (extremities), approx. 1200 mm (precordial)
Classification: Device with external power supply, Class IIa according to MDD, Type CF application part
Underlying standards: IEC 60601-1, DIN IEC 60601-2-25, IEC 60601-1-2
Reusable electrodes
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Designed For EveryDay Life– Now with Auto-EPAP
To meet the needs connected to a wide range of respiratory conditions a ventilator must offer outstanding clinical versatility and performance. But equally important, it must be designed around the patient’s life, activities and home environment. Vivo 45 LS is a life support ventilator for adult and pediatric patients from 5 kg. The Vivo 45 LS is designed to maximize independence and mobility.
Designed for everyday life
Meeting the needs of both medical staff and patient
The Vivo 65 is designed to meet the needs both of medical staff and a wide range of patients. It combines comfortable and controllable ventilation with excellent monitoring capabilities to potentially reduce readmissions to acute care facilities.
The Vivo 65 is an advanced homecare ventilator designed to deliver secure and comfortable (life-support) treatment to adult and pediatric patients from 5 kg. The Vivo 65 can be used for a wide variety of patients thanks to a comprehensive set of modes, circuits and accessories.
The dual limb circuit allows for measurement of exhaled volumes providing additional security. The extensive moni- toring capabilities help obtain a better insight into the quality of ventilation. The Vivo 65 is an excellent choice for mechanical ventilation at home, in the hospital and in long- term care facilities. The Vivo 65 is prepared for connection to Breas cloud solutions.
Portable hospital spirometer
AioCare is a professional system to monitor and treat pulmonary diseases, consisting of a portable hospital-grade spirometer connected to a smartphone app and an online panel to access the results. The device enables a full spirometry test to be conducted in a doctor’s office, including a bronchial challenge workflow. If monitoring needs to go beyond the healthcare system, AioCare may be used for patients at home.
Medisorb™ CO2 Absorbent
The Medisorb™ CO2 absorbent product line supports GE Healthcare anesthesia machines. Available in a wide range of sizes and styles, it is specifically designed to help change out absorbers simply. It is also available in a low-alkaline formulation, Medisorb™ EF.
As Medisorb™ soda lime becomes exhausted, it changes colour from white to violet. With the Medisorb™ EF EX, this colour change is longer lasting, thus helping to identify previously used absorbent. The Medisorb™ EF EX will also turn violet if desiccated. Note: Colour indication is not a definitive guide to remaining absorbent life and should always be used in conjunction with CO2 monitoring.
Medisorb™ product line:
Brochure
