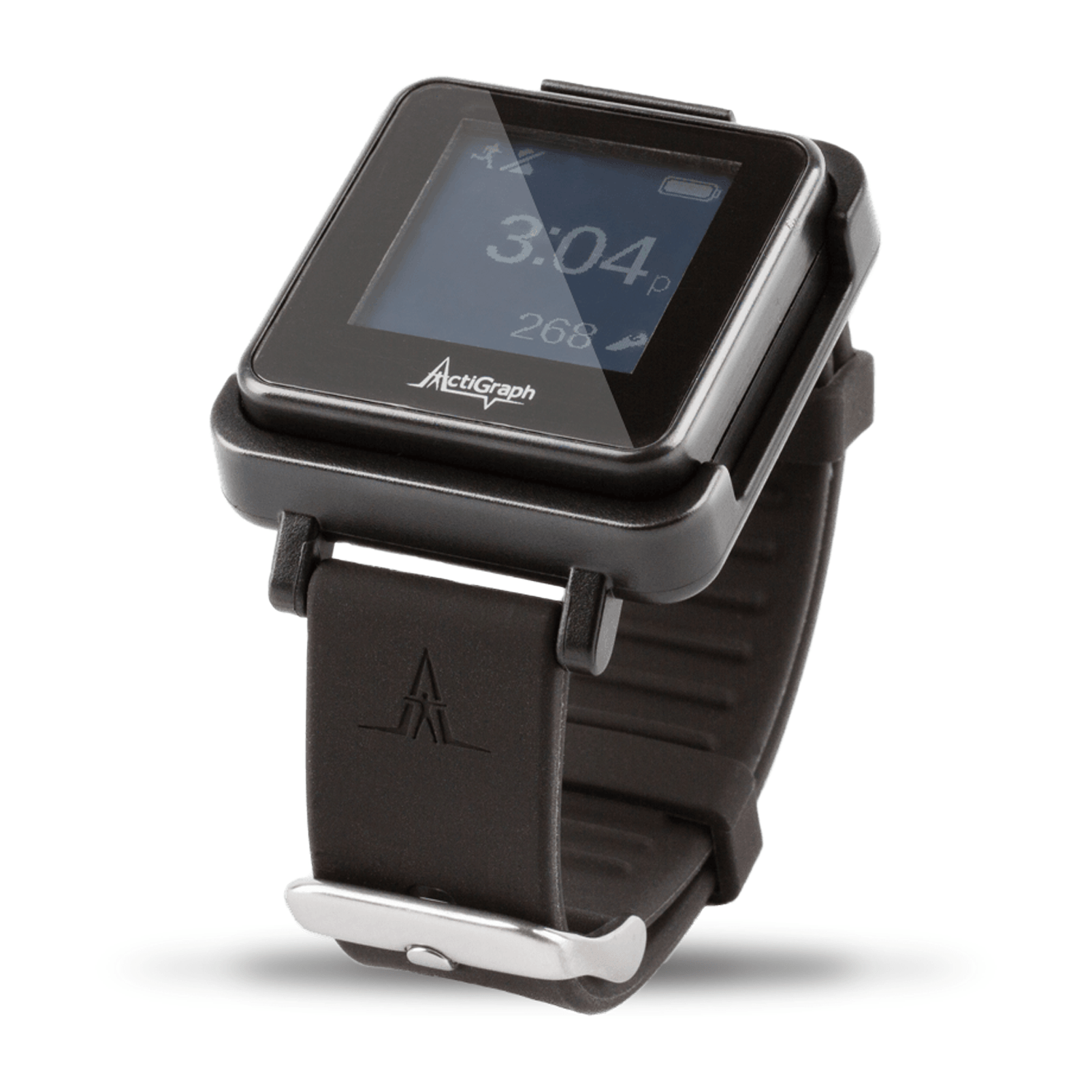

Top-of-the-range activity monitor
The ActiGraph GT9X Link captures and records high resolution human activity information using a solid state 3-axis MEMS accelerometer and our proprietary filtering algorithm. The GT9X Link is our most sophisticated activity monitor and represents a significant upgrade from previous models. Building on our validated physical activity and sleep measurement platform, it has been redesigned with a rich set of new features along with multiple new channels of sensor data captured by gyroscope, magnetometer and secondary accelerometer. High resolution LCD screen, Bluetooth® for wireless data capture and uploads to ActiGraph’s mobile applications makes GTX9 Link the most versatile and user-friendly activity monitor in our range. It is fully backward compatible with previous device models to ensure data comparability for our existing clients.
Dimensions: 3.5 x 3.5 x 1 cm
Weight: 14 grams
Sample rate: 30-100 Hertz
Battery life: 14 days*
Memory: 4GB
Data storage: 180 days
Dynamic range (primary accelerometer): +/- 8G
IMU sample rate: 100 Hertz
Gyroscope dynamic range: +/- 2000 deg/sec
Dynamic range (secondary accelerometer): +/- 16G
Magnetometer dynamic range: +/- 4800 micro-Tesla
Communication: USB, Bluetooth® LE
Water resistance: IP27 1 meter, 30 min.
Wear location: Wrist, waist, ankle, thigh
*Wireless disabled, 30 Hz sample rate, IMU disabled, sleep mode.

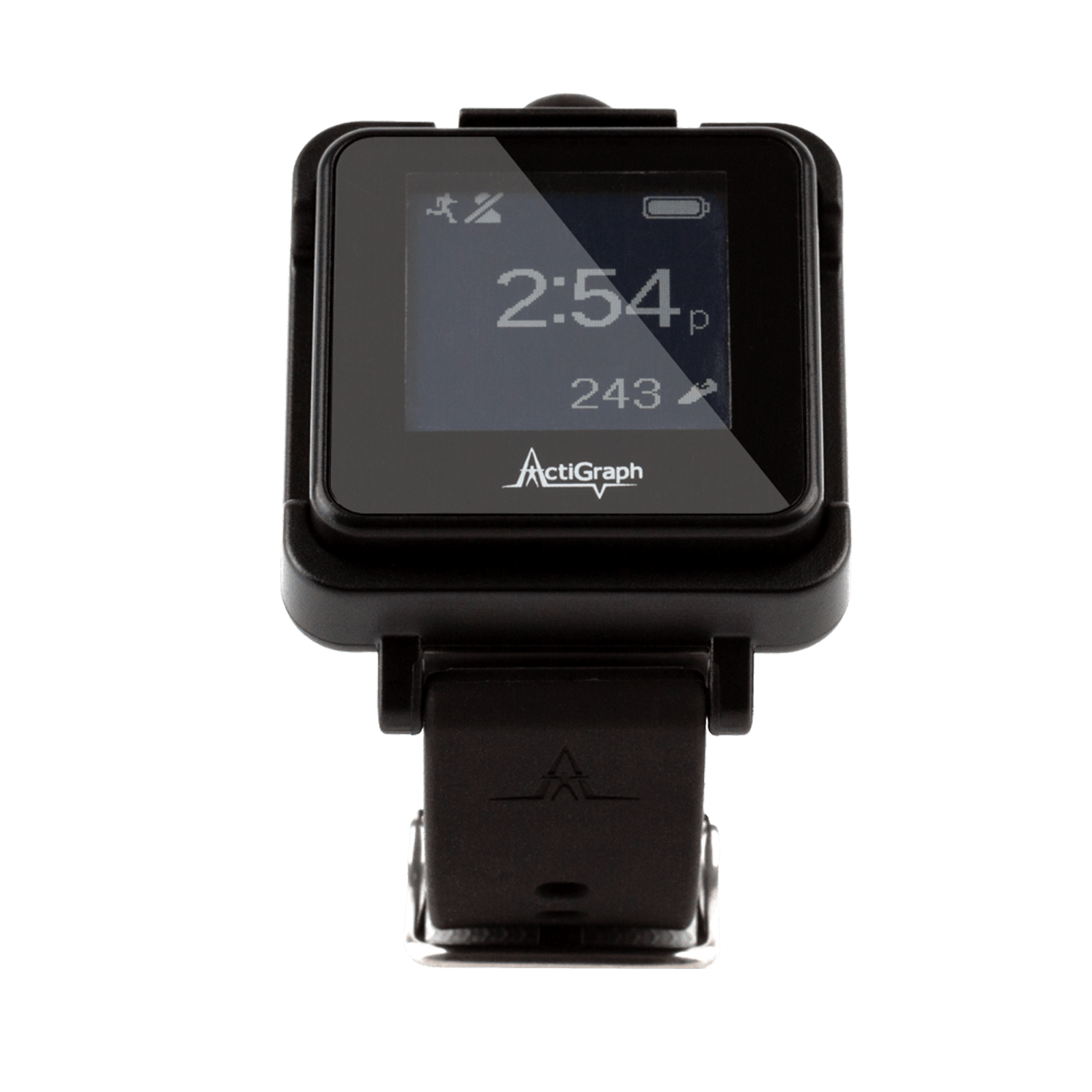

The redesigned ActiGraph GT9X Link features ActiGraph’s validated 3-axis accelerometer and data filtering technology with a sleek, low-profile case and high-resolution liquid crystal display (LCD) window for optional real-time subject feedback. The Bluetooth® Smart ActiGraph GT9X Link includes a gyroscope, magnetometer, and secondary accelerometer to deliver valuable information about movement, rotation, and body position.
Programmable Display
The ActiGraph GT9X Link features a programmable LCD window that can be configured to display date and time and/or provide real-time activity feedback such as steps and kcals, or it can be completely disabled. An integrated IMU containing a gyroscope, magnetometer, and secondary 3-axis accelerometer sensors provides raw position and rotational data for a variety of advanced applications, including inclination, gait analysis, and fall detection*. An advanced wear time sensor on the back of the device uses capacitive touch technology to automatically detect when a wrist worn device has been removed for simplified compliance monitoring and data cleaning.
Bluetooth® Smart
The ActiGraph GT9X Link is powered by Bluetooth® Smart technology and offers a variety of wireless features, including heart rate monitoring, proximity detection, and communication with ActiGraph’s suite of mobile applications for iOs and Android devices.
* ActiGraph products are not intended to diagnose, treat, cure, or prevent any disease.
The ActiGraph GT9X Link captures and records high resolution raw acceleration data, which is converted into a variety of objective activity and sleep measures using publicly available algorithms developed and validated by members of the academic research community. Available measures include:
*Requires compatible Bluetooth® Polar H7 or Polar H10 heart rate monitors
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Meeting the needs of medical staff and patients
The Vivo 55 is an advanced homecare ventilator designed to deliver secure and comfortable treatment to patients from 10 kg. The Vivo 55 can be used for a wide variety of patients, both life-support and non life-support, thanks to a comprehensive set of modes, circuits and accessories.
The Vivo 55 is designed to meet the needs both of medical staff and a wide range of patients. It combines comfortable and controllable ventilation with excellent monitoring capabilities to potentially reduce readmissions to acute care facilities. The extensive monitoring capabilities help obtain a better insight into the quality of ventilation. The Vivo 55 is an excellent choice for mechanical ventilation at home, in the hospital and in long-term care facilities. The Vivo 55 is prepared for connection to Breas cloud solutions.
Designed For EveryDay Life – Now with Auto-EPAP and MPV
To meet the needs connected to a wide range of respiratory conditions a ventilator must offer outstanding clinical versatility and performance. But equally important, it must be designed around the patient’s life, activities and home environment. Vivo 45 is a ventilator designed to maximize independence and mobility.
Designed for everyday life
Versatile Airway Clearance
Introducing the Clearway 2 with TreatRepeat®. The second-generation MI-E device by Breas incorporates the latest technology to bring effective and accurate treatment for patients requiring airway clearance and cough assistance. TreatRepeat function allows clinicians to manually deliver different numbers of insufflations and exsufflations and then save the treatment they have just delivered to the device to be repeated automatically. Helping to improve accuracy and speed of titration and set-up.
Multiple mode options
Up to four treatment profiles can be saved to the device.The settings used in the manual and programmed modes are also saved to the device. This allows for up to 7 MI-E prescriptions to be saved. The treatment settings in the IPPB and NIV modes are also saved. The programmable mode enables the delivery of multiple insufflations as part of a cough cycle.
For all essential spirometry testing
The modular JAEGER Vyntus™ PNEUMO belongs to the Vyntus Family and is combinable with Vyntus APS for bronchial challenge testing and/or Vyntus IOS Impulse Oscillometry for measuring central and peripheral airway resistance.
Use your Vyntus Pneumo for all of the essential spirometry testing: Flow/Volume-loop (FVC), Slow Vital Capacity (SVC), Maximum Voluntary Ventilation (MVV), Pre and Post medication testing or therapy control.
Optionally, Vyntus Pneumo allows expanding your diagnostic possibilities with measurements like Rocc, P0.1, Pmax, SNIP, rhinomanometry and compliance. Vyntus Pneumo is enhanced by the workflow- and quality-driven SentrySuite™ Software.
The reliable, proven, accurate, heated Jaeger pneumotach has been selected as the measurement device of choice in hundreds of publications. Its excellent dynamic range allows for testing a broad population, from small children to athletes. Thousands of PFT labs profit daily from its high performance.
Datasheet
